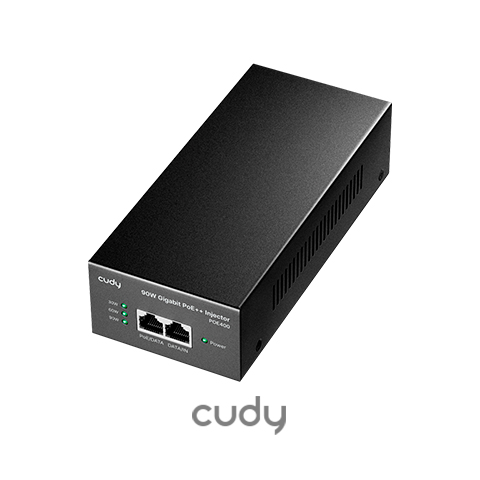

FONTE 90W GIGABIT POE++/POE INJETOR (POE400)

FONTE 90W GIGABIT POE++/POE INJETOR (POE400)

Marca: Cudy
Código: 5517

• Fonte PoE que adiciona energia injetando até 90W de energia no cabo Ethernet para alimentar o dispositivo PoE
• 1 Porta Gigabit de entrada, 1 Porta Gigabit de saída
• 100M de distância na transmissão de enrgia/dados
• 802.3at/af/bt, Max 90W
• 4 Pares 1/2- 3/6+
• Luz indicativa de LED
• Proteção de surto

CATEGORIAS ACESSÓRIOS, CUDY, ENERGIA, FONTES POE, INJETORES, SEM CABO

INFORMAÇÕES DO PRODUTO

Model Version	POE400 2.0
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3af PoE 802.3at PoE 802.3bt PoE
PoE	Uplink Stream	1× GbE
	Downlink Stream	1× GbE, 802.3at/af/bt
	Downlink Pin Assignment	Four-Pair
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit

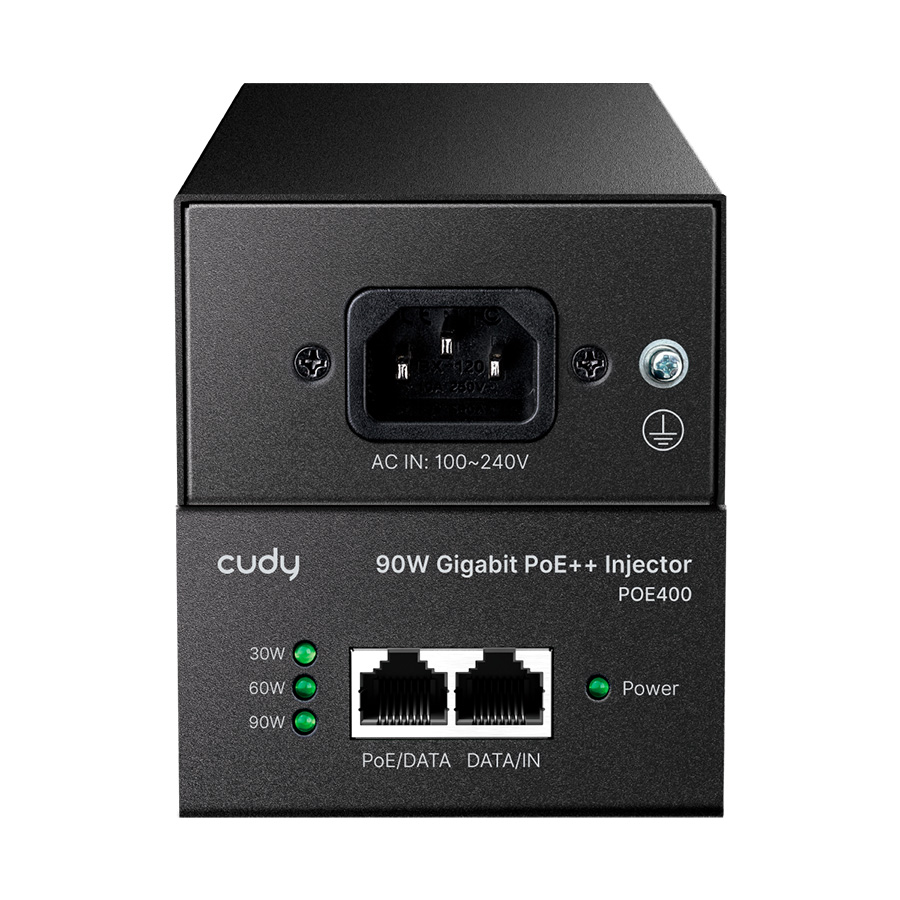

Interfaces	LED	Power PoE Wattage
	Power Input	AC Inlet
Power	AC	100-240V 50/60Hz 2.2A
	Max Power Output	90W, 54V⎓1.67A
Reliability	Client Protection	Surge Protection
	EMC	EN55032 Class A EN55035 Class A
	EMI	FCC 47 CFR Part 15B Class A
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 4kV
	Grounding Methods	Grounding Point Three-Prong Plug
	Environment	Ambient Operating Temperature: -10~40 ℃ (14~104 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop Wall-mount
	Dimension	176×80×46 mm 6.93×3.15×1.81 inches
	Casing Material	Metal

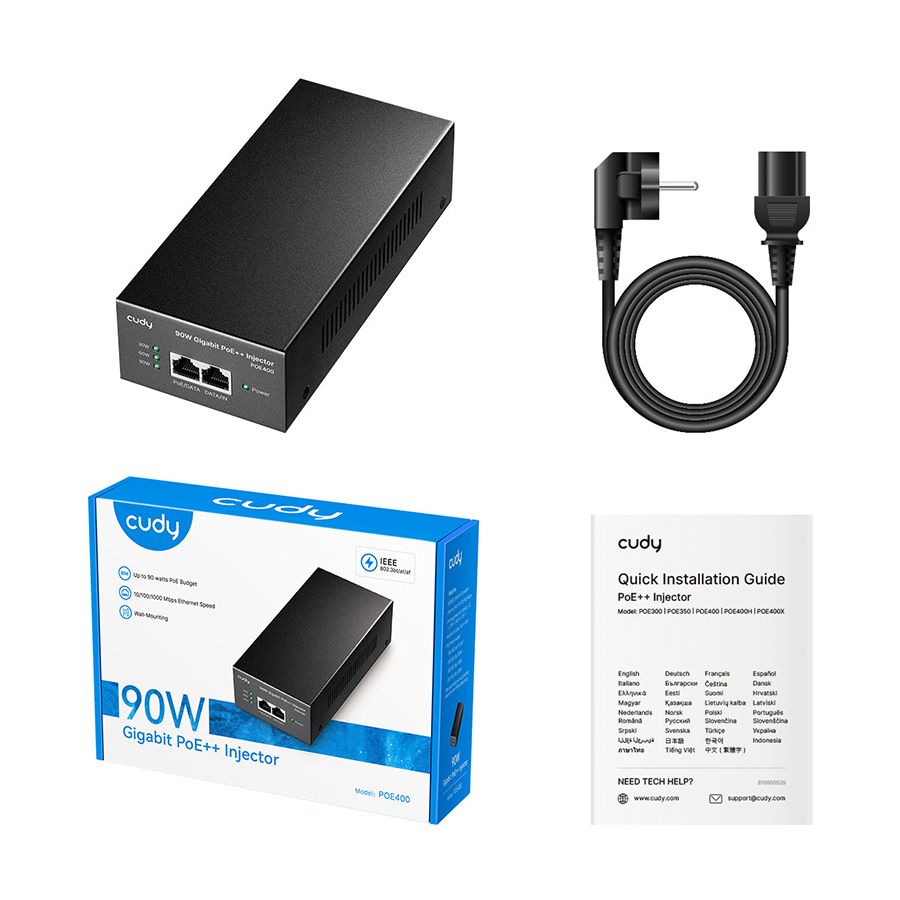

Package Content	POE400 Power Cord Installation Guide
Ordering Information	Retail Package Dimension	183×121×55 mm 7.2×4.76×2.17 inches
	Units per Carton	20
	Carton Dimension	41×29.9×29.7 cm 16.14×11.77×11.69 inches
