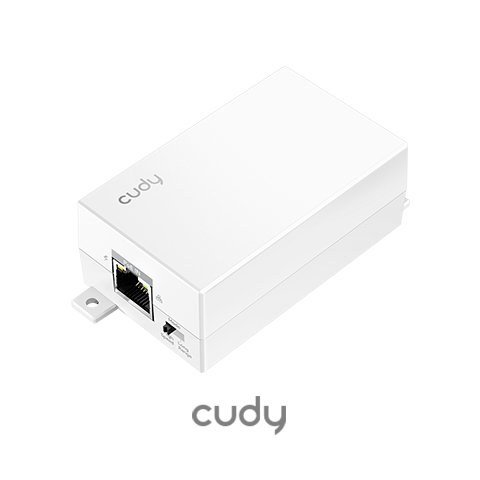

EXTENSOR INJETOR POE+ (POE10)

Marca: Cudy
Código: 5519

• Extensor Gigabit PoE que aumenta a distância PoE em até 250 metros, com modo de longo alcance para extensão máxima de 250 metros
• 1 Porta Gigabit de entrada, 1 Porta Gigabit de saída
• Entrada 802.3at/af
• Saída 802.3at/af Max 30W
• Modo de alta velocidade/longo alcance
• Estenda a transmissão por 250 metros
• Montável em parede

CATEGORIAS ACESSÓRIOS, ENERGIA, INJETORES

INFORMAÇÕES DO PRODUTO

Model Version	POE10 2.0
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control 802.3af PoE 802.3at PoE
Interfaces	PoE+ Ethernet Ports	2
PoE	Uplink Stream	1× GbE, 802.3at/af
	Uplink PIN Assignment	Mode A / Mode B
	Downlink Stream	1× GbE, 802.3at/af
	Downlink Pin Assignment	Mode A
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Transimission Distance Note	250-meter transmission is only available under the Long-Range mode.

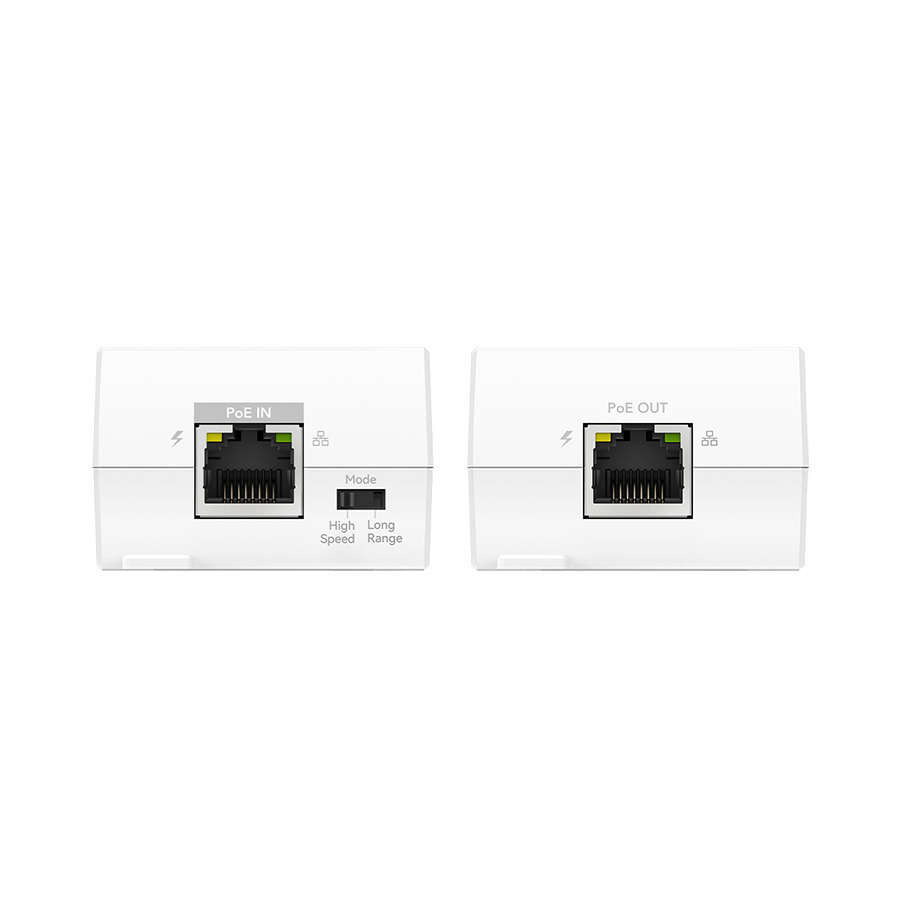

Interfaces	Physical Buttons	High-Speed/Long-Range DIP Switch
	LED	PoE Status of Each PoE Port Link/ACT of Each Ethernet Port
Power	Power Methods	802.3at/af PoE
	Passive PoE	48V
	Power Input	≥30W is recommended
	Max Power Output	30W
	Max Power Output Note	The actual power output depends on input
	Max Power Consumption (W)	2W
Reliability	Client Protection	Polarity Protection Overvoltage Protection Short-Circuit Protection
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
	Environment	Ambient Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~95% non-condensing Storage Humidity: 5%~95% non-condensing
Certifications	FCC, CE
Mechanical	Install in a Daisy Chain	Up to 3 extenders in a chain
	Installation	Desktop Wall-mount
	Dimension	98.4×48.9×31.9 mm 3.87×1.93×1.26 inches
	Casing Material	Plastic
	Product Weight	58.4 g (2.06 oz.)

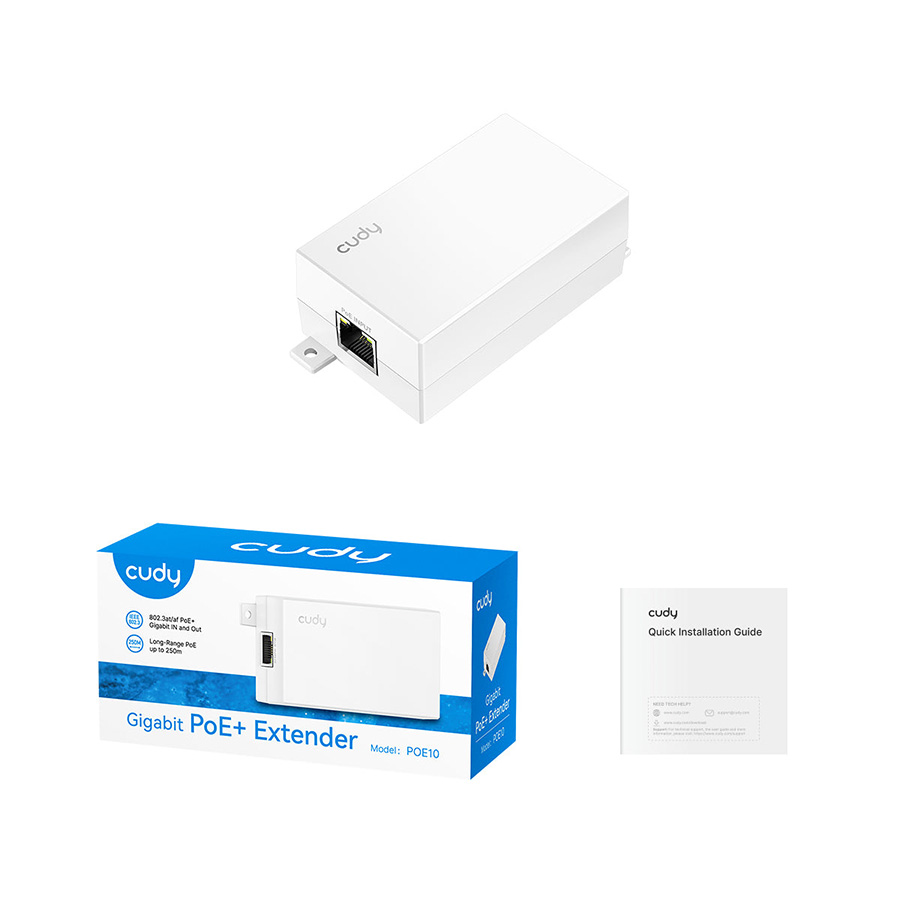

Package Content	POE10 Mounting Kit Installation Guide
Ordering Information	Retail Package Dimension	106.5×53×40 mm 4.19×2.09×1.57 inches
	Retail Package Weight	89.0 g (3.14 oz.)
	Units per Carton	100
	Carton Net Weight	8.9 kg (19.62 lbs)
	Carton Gross Weight	9.5 kg (20.94 lbs)
	Carton Dimension	45.2×22×29.4 cm 17.8×8.66×11.57 inches
