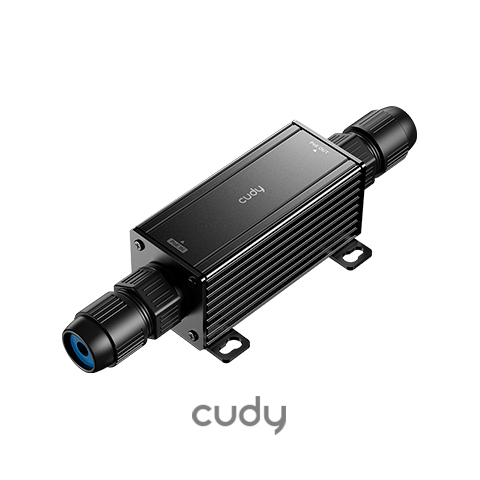

EXTENSOR INJETOR POE+ OUTDOOR IP67 (POE15)

Marca: Cudy
Código: 5518

• Um extensor PoE à prova de intempéries que aumenta a distância PoE em 100 metros
• Para uso externo com IP67
• 1 Porta Gigabit de entrada, 1 Porta Gigabit de saída
• Entrada 802.3at/af
• Saída 802.3at/af Max 30W
• Montável em parede

CATEGORIAS ACESSÓRIOS, ENERGIA, INJETORES

INFORMAÇÕES DO PRODUTO

Model Version	POE15 2.0
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control 802.3af PoE 802.3at PoE
PoE	Uplink Stream	1× GbE, 802.3at/af
	Uplink PIN Assignment	Mode A / Mode B
	Downlink Stream	1× GbE, 802.3at/af
	Downlink Pin Assignment	Mode A
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit
Power	Power Input	≥30W is recommended
	Max Power Output	30W
	Max Power Output Note	The actual power output depends on input
Reliability	Client Protection	Polarity Protection Overvoltage Protection Short-Circuit Protection Automatic Voltage Regulation
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level X Surge: RJ45: CM 6kV
	Grounding Methods	Grounding Point
	Environment	Ambient Operating Temperature: -20~70 ℃ (-4~158 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~100% non-condensing Storage Humidity: 5%~95% non-condensing
	Ingress Protection Rating	IP67
Certifications	FCC, CE
Mechanical	Installation	Desktop Wall-mount
	Dimension	206×66×46.1 mm 8.11×2.6×1.81 inches
	Casing Material	Metal
Package Content	POE15 Mounting Kit Installation Guide
Ordering Information	Retail Package Dimension	136×81×61 mm 5.35×3.19×2.4 inches
	Units per Carton	40
	Carton Dimension	35.2×32.4×29.3 cm 13.86×12.76×11.54 inches
